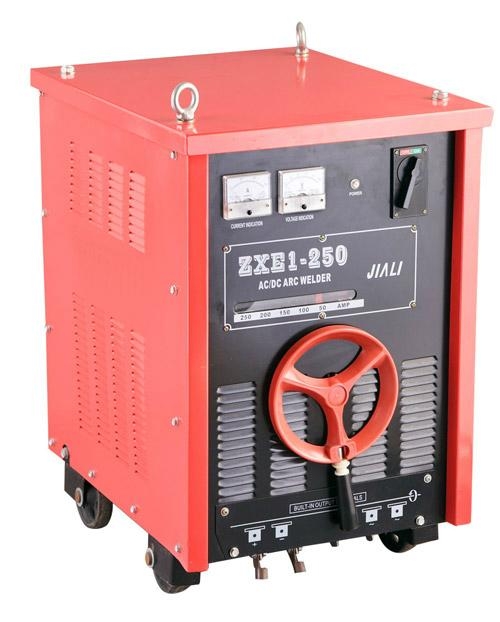

ZXE1 AC.DC ARC-19
|
|
| 型号︰ | ZXE1-250 |
| 品牌︰ | 拓朴 |
| 原产地︰ | 中国 |
| 单价︰ | - |
| 最少订量︰ | 100 件 |
|
|
|
|
|
|
|
| 包装︰ | 木箱 |
| 产品规格︰ | Model: ZXE1-200
Rated input voltage(V): 380
Non-load voltage: 58V
Current(A): 40-200
Rated Duty Cycle: 35%,
Input capacity(KW):12.2
Class of Insulation: F
Applied welding Rod: 2-4
Weight: 94kg
External Dimension(cm): 64*49*71
Model: ZXE1-250
Rated input voltage(V): 380
Non-load voltage: 60V
Current(A): 50-250
Rated Duty Cycle: 35%,
Input capacity(KW):15.7
Class of Insulation: F
Applied welding Rod: 2-5
Weight: 98kg
External Dimension(cm): 64*49*71
Model: ZXE1-315
Rated input voltage(V): 380
Non-load voltage: 70V
Current(A): 65-315
Rated Duty Cycle: 35%,
Input capacity(KW):23.2
Class of Insulation: F
Applied welding Rod: 2-5
Weight: 143kg
External Dimension(cm): 71*51*86
Model: ZXE1-400
Rated input voltage(V): 380
Non-load voltage: 70V
Current(A): 80-400
Rated Duty Cycle: 35%,
Input capacity(KW):30
Class of Insulation: F
Applied welding Rod: 2-6
Weight: 143kg
External Dimension(cm): 71*51*86
Model: ZXE1-500
Rated input voltage(V): 380
Non-load voltage: 70V
Current(A): 100-500
Rated Duty Cycle: 500A@35%, 400A@60%, 180A@100%
Input capacity(KW):36.8
Class of Insulation: F
Applied welding Rod: 2-8
Weight: 168kg
External Dimension(cm): 71*54*86
|
| 产品优点︰ | Single phase, AC/DC on-wheel, Fan-cooled, high duty cycle
Moving coil type transformer, step-less current adjustment
Welding machine for MMA welding indirect(DC)and alternation current(AC)
Flexibility of use with a wide range of electrodes, rutile, basic,stainess steel and cast iron with thermal protection
wooden case |
| 主要市场︰ | 全球 |
| 参考单价︰ | 面议 |
| 付款方式︰ | 电汇 |
| 最小订量︰ | 100 |
| 交货日期︰ | 30天 |
| 认可标准︰ | ISO9001 |
|
|
